MIL-PRF-1/1011E
Dimensions
Ltr
Inches
Millimeters
Min
Max
Min
Max
Conformance inspection, part 2
A
---
4.455
---
113.16
B
1.440
1.560
36.58
39.62
C
3.500
3.875
88.90
98.43
D
2.750
3.000
69.85
76.20
J
---
.260
---
6.60
Conformance inspection, part 3
(periodic check)
F
---
1.312
---
33.32
G
.146
.166
3.71
4.22
H
---
.250
---
6.35
L
Base: See note 2
M
Cap: C1-1 (EIA)
Reference dimensions
E
.750
19.05
K
.312
7.92
Pin connections
Pin No.
Element
h
1
k
2
3
g
4
h,k
cap
a
NOTES:
1. Clamping area insulated from ground.
2. Pins and pin arrangement in accordance with A4-89(EIA).

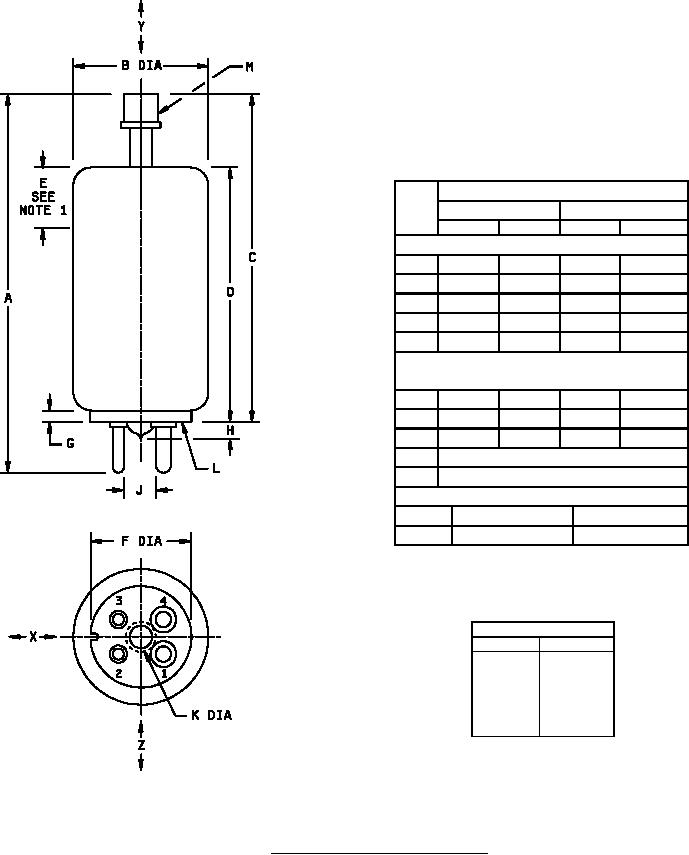

FIGURE 1. Outline drawing of electron tube type 5957
5
