INCH-POUND
MIL-DTL-24251/5D
11 July 2013
SUPERSEDING
MIL-DTL-24251/5C
15 February 2008
DETAIL SPECIFICATION SHEET
SHIELD, ELECTRON TUBE, HEAT DISSIPATING,
7 AND 9 PIN, MINIATURE (OPEN SIDES)
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24251.
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
NOTES:
1. All dimensions are in inches.
2. Millimeters are in parentheses.
3. Metric equivalents (to the nearest 0.01 mm) are given for general information only and are based upon
1 inch = 25.4 mm.
4. Unless otherwise specified, tolerance is 2 places .010 (0.25 mm); 3 places .005 (0.13 mm).

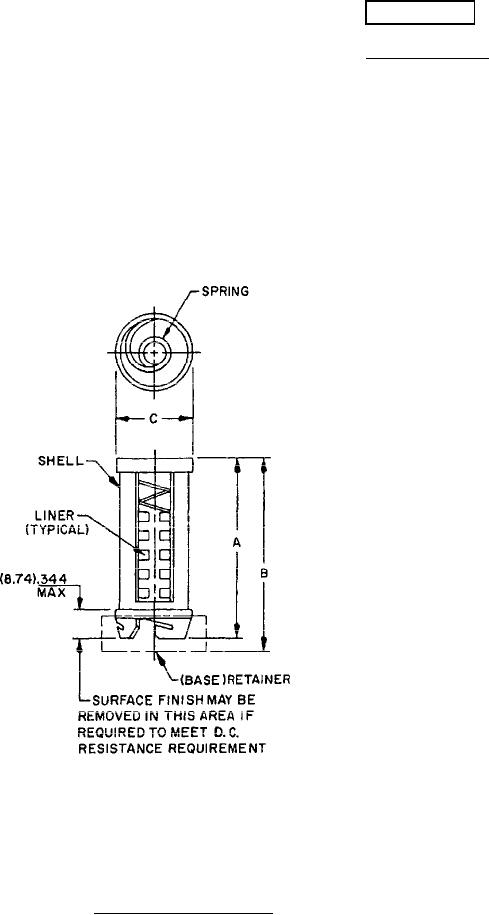

FIGURE 1. Dimensions and configuration.
AMSC N/A
FSC 5960
